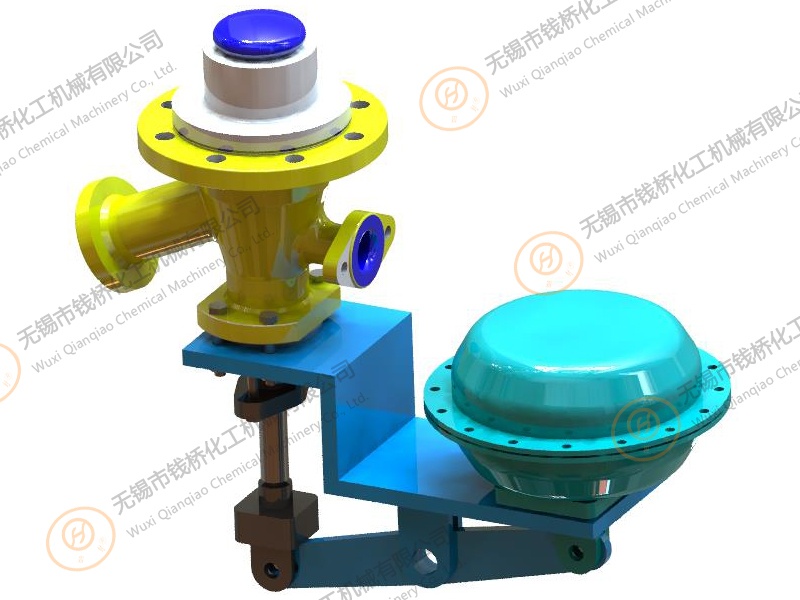

Bottom outlet valve (60°) gap free with pneumatic actuator

Bottom outlet valve (60°) gap free with pneumatic actuator（Side cylinder）搪玻璃上展式自動放料閥（側向執行機構）.The inorganic acid, organic acid, weak alkali solution and organic solvent are superior to stainless steel in strong corrosive media such as hydrochloric acid, ni
ONLINE

Bottom outlet valve (60°) gap free with pneumatic actuator（Side cylinder）

The inorganic acid, organic acid, weak alkali solution and organic solvent are superior to stainless steel in strong corrosive media such as hydrochloric acid, nitric acid, and aqua regia.

搪玻璃上展式自動放料閥

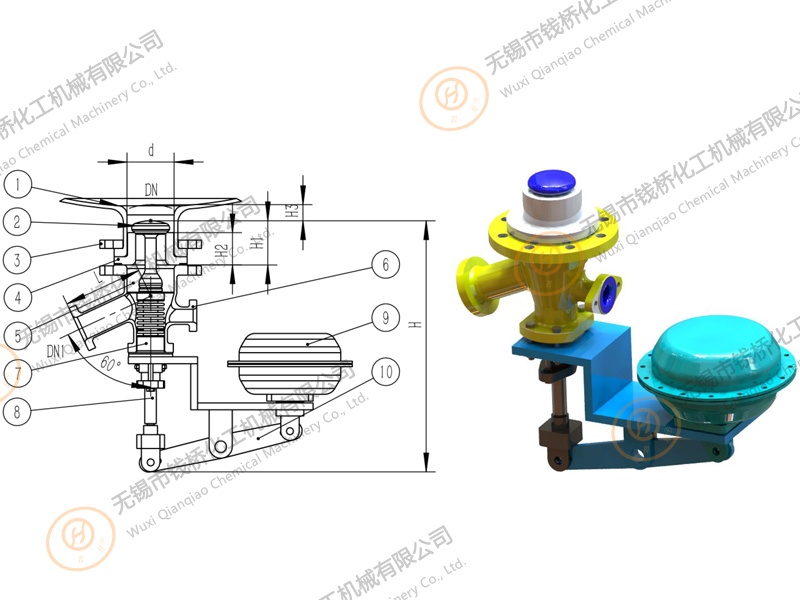

1、RECATOR  2、SPINDLE  3、SPLIT FLANGE  4、VAVLE SEAT  5、VAVLE BODY  6、
CLEANING POSITION   7、CORRUGATED PIPE  8、VAVLE STEM  9、CYLINDER  10、LEVER

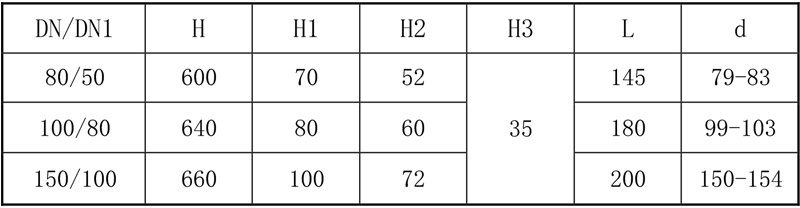

搪玻璃上展式自動放料閥參數表

Operating temperature:-19°C~200°C (Sudden temperature change less than 120°C)
Operating pressures：-0.1MPa~1.0MPa
Operating environment: The inorganic acid, organic acid, weak alkali solution and organic solvent are superior to stainless steel in strong corrosive media such as hydrochloric acid, nitric acid, and aqua regia. Can not be used for liquids containing fluoride ions (such  as  hydrofluoric acid, etc.), nor  can  it be usedfor strong alkalis and concentrated phosphoric acid with a temperature ≥180°C.
